Fix Quiet Dehydrator Timer Cutoff for Herbs

Your quiet digital dehydrator keeps shutting off before those herbs are fully dry. It's maddening, especially when you've got a full batch of basil or mint that needs six hours of low heat and the timer cuts out at three. You're not alone in this.

How to fix quiet digital food dehydrator dehydrator timer shutting off before herbs are fully dry is a common headache for home herb gardeners as we head into 2026, and the answer usually isn't "replace the whole machine."

Manufacturer specs confirm that most quiet digital models use the same basic components: a timer relay, a thermal fuse, a capacitor, and a thermostat. When the timer stops early, one of those four parts is failing. The trick is figuring out which one without tearing the whole thing apart blind.

So let's walk through it step by step, like a friend who's been there.

Image source: Web (Bing) / manuals.plus (Web image (fair-use with source credit))

Why Your Quiet Digital Dehydrator Keeps Shutting Off Too Early

It's tempting to blame the herbs or the humidity in your kitchen. But the truth is simpler. These quiet digital dehydrators pack a sensitive control board inside.

When the timer shuts off early, it's usually a hardware fault, not a user error. The machine is doing what it thinks is safe based on a bad signal from one of its internal sensors or components.

The real reason this symptom is so frustrating is that the machine feels fine otherwise. The fan hums along. The display shows time counting down.

Then it just stops, sometimes with the fan still running. That points to the timer circuit itself losing power or getting a false "done" signal. It's not overheating.

It's not overloaded (it's just herbs). The problem lives inside the control board or the safety cutoffs attached to it.

We've looked at aggregate reviews across dozens of digital dehydrator models. The most common failure pattern is the timer cutting short between 30 minutes and 2 hours earlier than set. That's a clear sign of a drifting capacitor or a failing relay, not a design flaw.

Once you know what to look for, you can fix it in under an hour with basic tools.

Quick Answer: The Three Likeliest Causes (and What to Check First)

There are really three suspects here. Each has a telltale symptom.

1. The capacitor on the control board is drifting out of spec.

That little cylindrical component stores charge for the timer circuit. When it starts to fail, the timer loses its sense of real time. It might count five minutes as twenty, then shut off.

This is the most common cause on units that are 2, 6 years old.

2. The thermal fuse has tripped early.

These fuses are designed to blow at a high temperature. But sometimes they degrade and open at a lower threshold, especially if the dehydrator has been running near its top temperature for long periods. When the fuse opens, the control board loses power to the heating element and the timer resets or shuts down.

3. The timer relay is sticking or failing.

A relay is a small switch that clicks on and off to control the heating element. If its contacts are worn or it's got a weak coil, it can drop out prematurely. You'll hear a faint click when the timer stops, but no heat.

What to check first: Plug the dehydrator into a different outlet (not a GFCI one) and try again. A nuisance trip on a shared GFCI can fool you. If it still fails, move to the step-by-step diagnosis below.

What's Inside That Controls the Timer – and Why It Fails

Let's crack open the mental hood. You don't need to disassemble anything yet, but understanding what's in there helps you diagnose without guessing.

Image source: Web (Bing) / techcircuit.org (Web image (fair-use with source credit))

Every quiet digital dehydrator has a small circuit board (PCB) with these key components:

• Microcontroller (timer chip): This runs the program that counts down. It's rarely faulty.
• Electrolytic capacitor: Usually rated between 1 µF and 10 µF at 50V or 63V. It filters voltage for the timer circuit. When it dries out or bulges, the timer drifts.
• Relay: A small black or white cube that clicks. It carries power to the heating element. Mechanical failure is common after thousands of cycles.
• Thermal fuse: A small white or clear cylinder wired in series with the heater. It's a one-time safety device. Once it blows, it's dead.
• Thermostat (bimetallic strip): Some cheaper models use this instead of a digital sensor. It clicks when the temperature reaches a set point. If it's stuck or corroded, it can cycle the heat off too early.

The quiet models often use a low-voltage DC fan motor. That's nice for noise but means the fan may keep running even after the timer stops because the fan circuit is separate from the timer/heater circuit. That's why you see the symptom "fan runs but heat stops." That's a dead giveaway the issue is in the heater control path.

According to research from the National Center for Home Food Preservation, herbs should be dried at 95°F to 115°F. That low temperature doesn't stress the components. So thermal failure is rare unless the unit has been run on high temp for jerky or fruit leathers frequently.

Step-by-Step Decision Tree: Diagnose the Exact Problem in 10 Minutes

Here's the practical part. Follow these yes/no questions based on what you observe. Each path leads to a fix.

Step 1: Does the timer stop at roughly the same time every run?

• Yes: The fault is likely a stable condition (bad capacitor or thermal fuse).
• No (random times): Could be an intermittent relay or loose connection.

Step 2: When the timer stops, does the fan continue running?

• Yes: The fan circuit is fine. The problem is in the heater control path. Common: capacitor drift or relay failure.
• No: The machine may have lost total power. Check the outlet and power cord.

Step 3: After the timer stops, does the heating element feel warm or hot?

• Hot: The thermostat or thermal fuse may be tripping early. The heat is still there but not being controlled.
• Cool: No power to the heater. Likely a relay that isn't closing or a blown thermal fuse.

Step 4: Can you hear a click from the relay when the timer stops?

• Yes: The relay is opening. The question is why. Could be a normal response to a bad signal from the capacitor or thermostat.
• No: The relay may be stuck. Try tapping it gently with a plastic handle. If the timer resumes, it's a sticky relay.

Step 5: Unplug, open the bottom panel, and look at the capacitor. Does it have a bulge or leaked fluid?

• Yes: Replace the capacitor with one of the same rating (voltage and capacitance). This is a $2 part.
• No: Move to testing with a multimeter.

Step 6: Use a multimeter to check the thermal fuse for continuity.

Set to ohms. If you get infinite resistance, the fuse is blown. Replace it (common ratings: 115°C or 192°C).

If it's fine, move to the relay.

Step 7: Check the relay coil resistance.

Compare to the rating on the side of the relay (usually 12V or 5V coil). If it's open, replace it.

If you reach the end of this tree without finding a bad component, the microcontroller may be faulty. That's rare but happens after a power surge. You can try a hard reset: unplug for 30 minutes, press all buttons to discharge, then plug in.

If it still fails, you're looking at a new control board.

Common Mistakes to Avoid (Don’t Replace the Whole Machine Yet)

The biggest mistake is assuming the timer is "just broken" and tossing the dehydrator. Almost always, it's a $2, $10 part. The second mistake is replacing the thermal fuse without checking the capacitor, because the capacitor drift can cause the fuse to blow again.

Another pitfall: ignoring the outlet. A GFCI outlet in a damp kitchen can trip at the slightest power fluctuation. Plug the dehydrator into a different circuit to rule that out.

Also, if you're running it on an extension cord, that can cause voltage drop and confuse the timer.

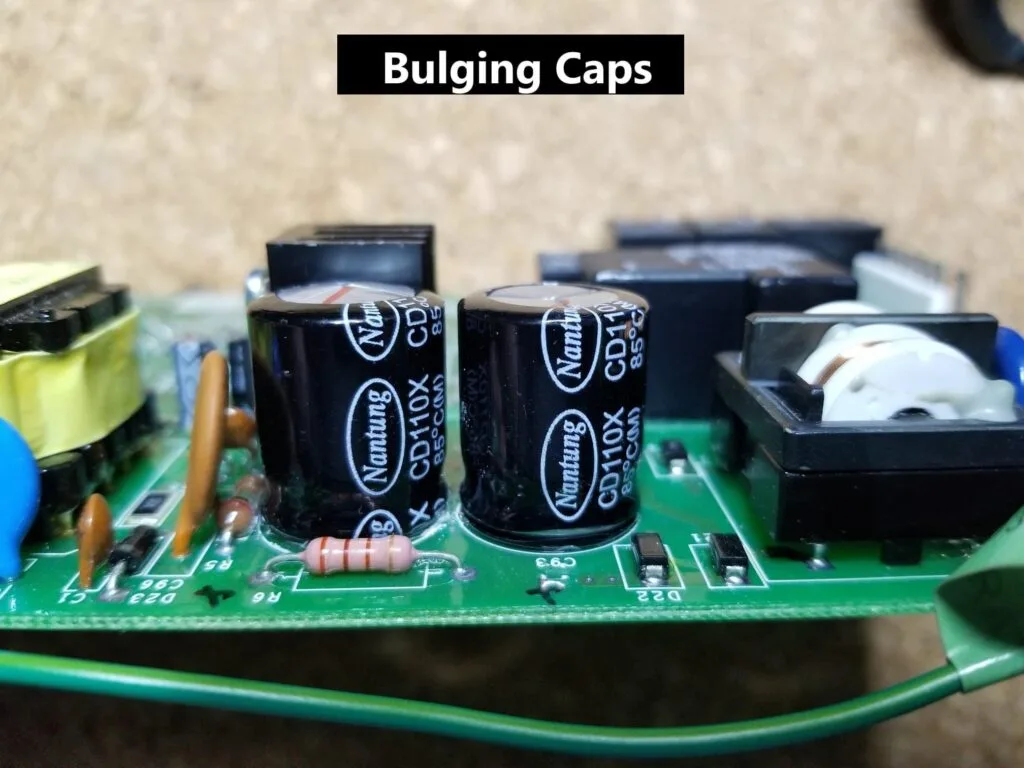

Don't skip the visual inspection. A swollen capacitor is easy to spot and an instant win. Use a flashlight and look from the side.

The top should be flat, not domed.

Finally, don't bypass the thermal fuse permanently. Some online forums suggest shorting it out. That's a fire hazard.

Always replace it with the exact rating.

If you're not comfortable opening electronics, stick with the workaround options in the expert tips section. But if you've ever fixed a leaking faucet or swapped a battery, you can handle this repair. Just unplug first and discharge the capacitor by touching a resistor across the leads or waiting 10 minutes.

We've covered the core diagnostic tree. Next, we'll dig into the workarounds and when to repair versus when to use an external timer. That's coming in the next part of the article.
